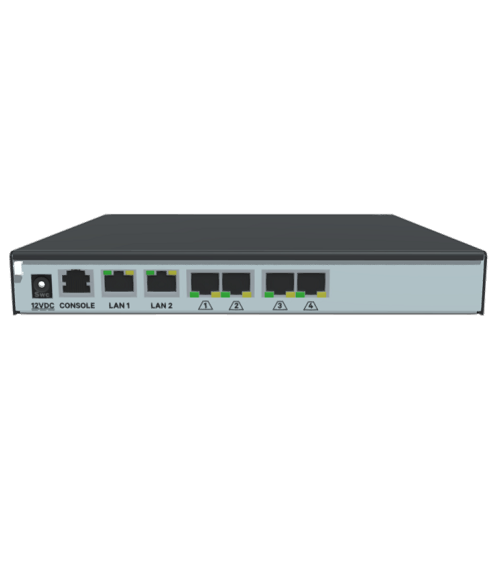

02831146 ACS804MEAC-400
4-Port ACS800 Serial Console with Analog Modem, External AC/DC Power Brick - Jumper Cord: Plug C14 to Connector C13.
The Vertiv Avocent ACS 800 serial console system takes Vertiv's renowned enterprise class technologies utilized in data centers around the world and packages the key features into an exciting compact and cost effective form factor. The ACS 800 provides serial access, environmental monitoring, IoT integration and remote networking capability to edge-oriented market sectors including financial institutions, retail chains and education.
The ACS8004MEAC-400 must include GPO power adaptor: 02831421 (T1255-21J) in miscellaneous section.
Mounting Options:1U Tray Mount: 02831201 - RMK-91
DIN-Rail Mount: 02831202 - RMK-92
Wall Mount: 02831203 - RMK-93
| CPU |
Dual-core ARM® Cortex™-A9 MPCore™ with CoreSight™ |
| Memory | 1G DDR3L Ram, 16GB eMMC Flash |
| Interfaces | 2 Gigabit (10/100/1000BT) Ethernet interfaces on RJ45 1 serial console port on RJ45 2, 4 or 8 serial ports on RJ45 Serial selectable between RS-232/RS-422/rs-485 Environmental sensor port on RJ45 (1-wire) Digital-Out port |
| Power | External AC/DC Power Adapter (power brick) 100-240 VAC, 50/60 Hz Input, 12 VDC Output |
| Power Usage |
Nominal voltage 120VAC |
| Product Dims & Weight | 220 × 185 × 30mm @ 1.1kg |
| Shipping Dims & Weight | 520 x 290 x 190mm @ 2.5kg |
| Operating Temperature | 0°C to 70°C |
| Humidity |
20% to 80% non-condensing |
| Power adapter |
02831421 (T1255-21J) |
| 1U tray mount |
02831201 - RMK-91 |
| DIN-Rail mount |
02831202 - RMK-92 |
| Wall mount |
02831203 - RMK-93 |
