02831222 AV3108-001

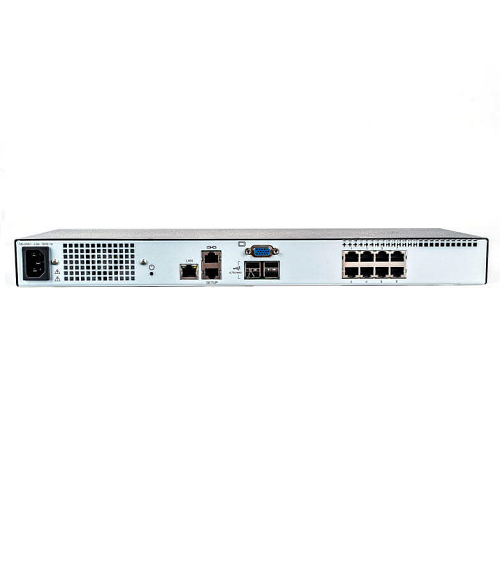

8-Port AutoView KVM with 1 Local and 1 Remote Users, VM and CAC, AC Power Supply with Jumper Cord: Plug C14 to Connector C13
The Avocent AutoView 3000 series switch is an analog keyboard, video and mouse (KVM) switch that provides flexible, centralized local access to data center servers. This series provides streamlined management and control of server resources all from a single console. The AV3108 supports one local, one remote user and up to 8 servers.
For GPO Power cord: include 02840049 (CAB0104)
Adapters & Accessories:
VGA/1xUSB: 02831454 - SFIQ-VGA
VGA/1xUSB: 02830705 - MPUIQ-VMCHS
HDMI/1xUSB: 02830826 - MPUIQ-VMCHD
DVI/1xUSB: 02831073 - MPUIQ-VMCDV
DP/1xUSB: 02831074 - MPUIQ-VMCDP
VGA/USB/2xPS2M: 02830008 - DSAVIQ-PS2M
Mounting Bracket: 02831207 - RMK-65
VGA/1xUSB: 02830705 - MPUIQ-VMCHS
HDMI/1xUSB: 02830826 - MPUIQ-VMCHD
DVI/1xUSB: 02831073 - MPUIQ-VMCDV
DP/1xUSB: 02831074 - MPUIQ-VMCDP
VGA/USB/2xPS2M: 02830008 - DSAVIQ-PS2M
Mounting Bracket: 02831207 - RMK-65
| Form factor |
1U |
| Device connectors |
8 ports for servers 4 USB 2.0 ports |
| Remote access |
1 remote KVM over IP user 10/100 Mbps Ethernet port |
| Local Access |
1 local ports 1 ACI port for tiering to another AutoView switch |
| Power supply |
AC input range: 100 - 240 VAC |
| Product Dims & Weight | 432 × 165 × 43.7mm @ 2kg |
| Shipping Dims & Weight | TBA |
| Operating Temperature | 0°C to 50°C |
| Warranty |
Standard 2 years with the options of 1/2/4 years Gold/Silver support |
| Power cord |
02840049 (CAB0104) |
| VGA/1xUSB |
02831454 - SFIQ-VGA |
| VGA/1xUSB |
02830705 - MPUIQ-VMCHS |
| HDMI/1xUSB |
02830826 - MPUIQ-VMCHD |
| DVI/1xUSB | 02831073 - MPUIQ-VMCDV |
| DP/1xUSB | 02831074 - MPUIQ-VMCDP |
| VGA/USB/2xPS2M | 02830008 - DSAVIQ-PS2M |
| Mounting Bracket | 02831207 - RMK-65 |
