02831176 ACS8008SAC-404

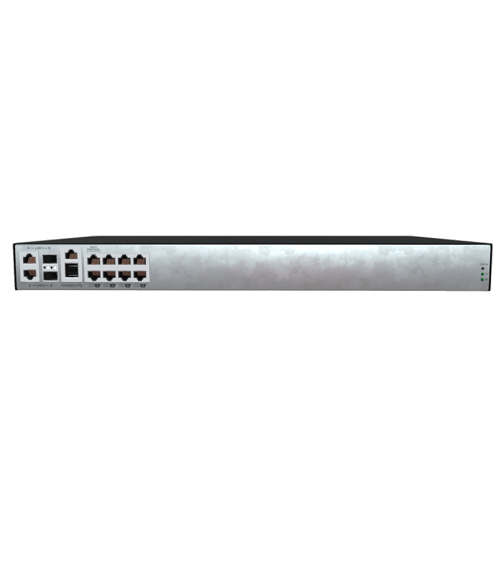

8-Port ACS8000 Console System with Single AC Power Supply (Non-TAA) with Jumper Cord
The Vertiv Avocent ACS 8000 Serial Consoles deliver secure in-band and out-of-band visibility and control to downstream equipment in enterprise data centers, as well as cloud and colocation facilities. Now with cellular capabilities, the system provides flexibility to access devices when wired networks are down (failover) or unavailable at the location.
The ACS8008SAC-404 8-Port Console System comes with single AC Power Supply (Non-TAA) with Jumper cord: Plug C14 to connector C13
For GPO Power Cord: Include 02840049 (CAB0104) Mounting Options:
0U Mount Kit: 02831113 - RMK-88
1U Mount Kit: 02831114 - RMK-89
| CPU |
Dual-core ARM Cortex-A9 MPCore with CoreSight |
| Memory | 1G DDR3L Ram, 16GB eMMC Flash |
| Interfaces | 1 full size SD Card slot Environmental sensor port on RJ45 (1-wire) 4 digital-in ports 2 Gigabit Fiber SFP Ports 2 Gigabit (10/100/1000BT) Ethernet interfaces on RJ45 1 serial console port on RJ45 8 serial ports on RJ45 8 USB 2.0 ports on Type A connector |
| Power | Internal 100-240 VAC, 50/60 Hz with IEC C14 Connectors |
| Power Usage |
Nominal voltage 240VAC |
| Product Dims & Weight | 440 × 242 × 45mm @ 3.5kg |
| Shipping Dims & Weight | 520 x 290 x 190mm @ 5kg |
| Operating Temperature | -10°C to 60°C |
| Humidity |
20% to 80% non-condensing |
| Power adapter |
02840049 (CAB0104) |
| 0U mount kit |
02831113 - RMK-88 |
| 1U mount kit |
02831114 - RMK-89 |
