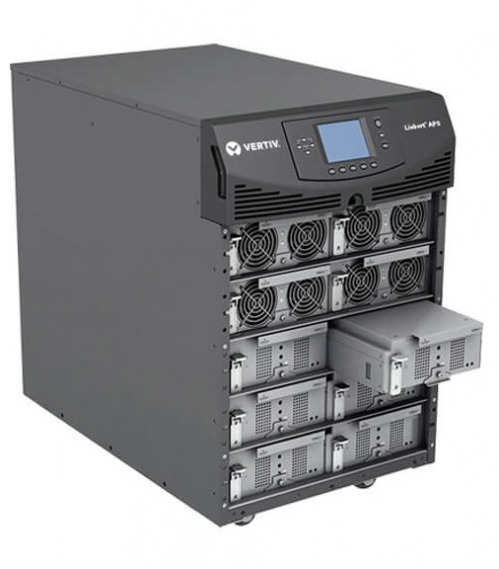

01201322 AS1A0NCUMNNX000 APS 10-Bays
Liebert Vertiv APS AS1 10-Bay Transformer Free System - Comes with 1x PM, 1xBM, 1x DSP, 1x MCU, 1x LCD Module, 1x POD Space - 2 Year Warranty
The Vertiv Liebert APS UPS provides mission-critical availability ensuring your critical IT functions – and your business – will be available and running as expected through power disruptions, fluctuations and outages. The Liebert APS UPS adapts efficiently and effectively as the needs of your users and core business power requirements change. The UPS offers capacity on demand with FlexPower core modules – allowing you to change capacity in 5kVA/4.5kW increments up to 20kVA.
The Liebert APS is best suited for:
- Banking, Financial and Insurance
- Education
- Healthcare
- Government
- Telecom
- Retail and Wholesale
| Frame Rating: |
15kVa / 13.5kW |
| Input Voltage: | 200/208/220/230/240VAC Single Phase 380/400/415 Three Phase |
| Output Voltage: | 200/208/220/230VAC Single Phase |
| Operating Temperature: | 0 to 40°C |
| Relative Humidity: | 0 - 95%. Non-condensing |
| Efficiency: | 91.8-92.0% |
| Power Factor: |
Single phase Input: ≥0.99 Three phase Input: ≥0.95 |
| Rated Frequency: | 50Hz / 60Hz |
| Product Dims & Weight: | 440 x 800 x 695mm @ 256.30kg |
| Shipping Dims & Weight: | 440 x 800 x 695mm @ 275.00kg |
| Warranty: | 2 Years |
| Batteries: | 12 x Lead-Acid Batteries Per String |
| Battery Capacity: | 36W @15min-rate to 1.67V per cell @ 25°C |
| Modules | Power Module |
| Battery Module |
|
| Charger Module |
|
| PODs: | PD2-200 |
| PD2-201 |
|
| PD2-202 |
|
| PD2-204 |
|
| Communication Card: |
IS-UNITY DP |
