01203156 GXE3-10KIRT5UXL

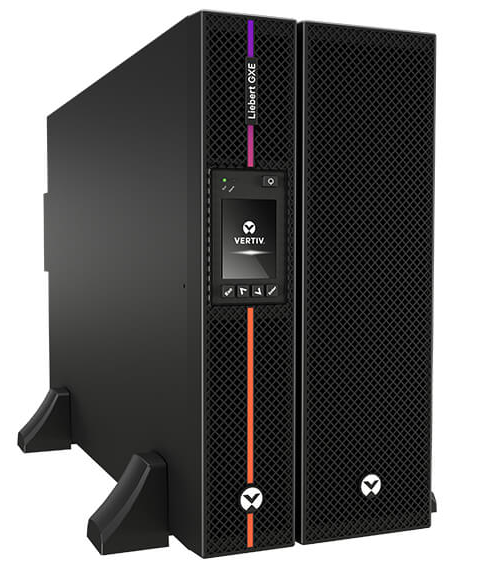

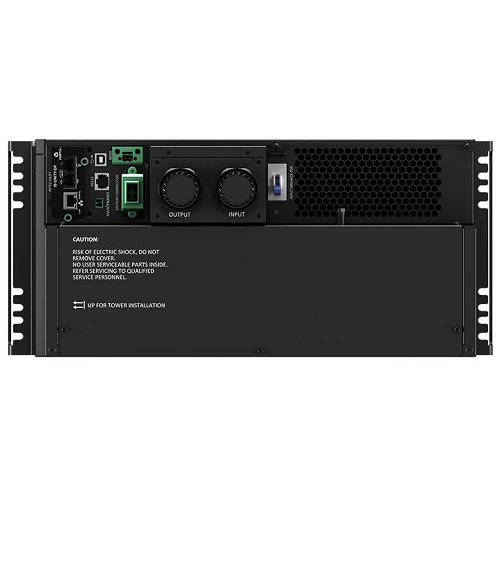

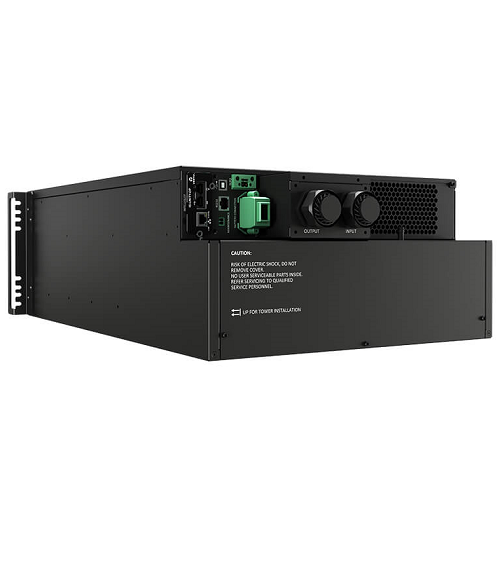

Vertiv Liebert GXE Online 10kVA UPS - 230V Single Phase - LCD PF1.0 - 5U Compact Rack/Tower - 1 Ph Input/1Ph Output - 2 Year Warranty
The Vertiv Liebert GXE UPS is an online double conversion solution which offers power protection in an affordable, efficient system with deployment and operation flexibility. The unit output power factor (1.0) of the Liebert GXE UPS enables continuous and reliable power to more connected devices, protecting them against many disturbances in the AC mains with the online double conversion technology. It provides flexibility with either a rack mounting UPS or a in tower form factor, suitable to provide power protection to the critical IT equipment for any application.
| Runtime tool: | Available here (Right click to open link in new tab) |
| Form Factor: | Tower / Rack (5U) |
| Capacity: | 10000VA / 10000W |
| Input Voltage Range: | 100 - 288 VAC |
| Output Voltage: | 220/230 (default) /240 |
| Power Factor: | 1 |
| Rated Frequency: | 40Hz to 70Hz |
| Efficiency: | 94% Online; 98% ECO mode |
| Waveform: | Pure Sine Wave |
| Product Dims & Weight: | 430 x 700 x 217mm @ 80kg |
| Shipping Dims & Weight: | 800 x 600 x 530mm @ 102kg |
| Operating Temperature: | 0 to 40ºC (up to 50ºC with derating) |
| Warranty: | 2 Years |
| Inlet: | Hardwired |
| Outlets: | Hardwired |
| Batteries: | Lead-acid |
| Extended Battery Cabinet: | GXE3-EBC240VRT3U |
| Relay Card: | IS-RELAY |
| Unity Card: | IS-UNITY-DP |
| SNMP Card: |
IS-UNITY-SNMP |
| Sensors: | SN-T Temp sensor |
| SN-TH Temp & humidity sensor |
| Rail Kits: |
Adjustable 4-post rack mounting kit |
| Rack mounting ears/hardware | |
| Tower base: | Stabilizing feet for tower configuration |
