01202672 Vertiv ITA2 10kVA Single Phase
Vertiv Liebert ITA2 UPS -10KVA/10KW 230/400V - Single Phase - LCD Long Backup Model - Web Card, Connection Cable & Mounting Rail Kits Included - Batteries Excluded - 3 Year Warranty.
The Vertiv Liebert ITA2 is a fully-digital, highly reliable, double-conversion UPS solution that provides clean and consistent power. This highly efficient solution is ideal for various deployments, including IT racks, network closets, automation control systems, and precision instruments to small sized control rooms among other edge applications.
- Cutting–edge design enables seamless integration into various ecosystems
- Cutting–edge design enables seamless integration into various ecosystems
- Tailored for global deployment in a low carbon, compact footprint
The Liebert ITA2 is best suited for:
- Banking, Financial and Insurance
- Education
- Data Center/ Colocation/ Hosting
- Healthcare
- Manufacturing
- Telecom
- Retail and Wholesale
- Government| Form Factor: | Tower/Rack Mountable |
| Capacity: | 10KVA / 10KW |
| Input Voltage Range: | 176VAC ~ 288VAC at full load |
| Output Voltage: | 220/230/240VAC 1-phase |
| Power Factor: | 1 |
| Rated Frequency: | 40 Hz - 70 Hz |
| Efficiency: | 95.8% Online; 99% ECO Mode |
| Waveform: | Pure Sine Wave |
| Product Dims & Weight: | 430 x 560 x 85mm @ 15 kg |
| Shipping Dims & Weight: | 590 x 760 x 230mm @ 17.5 kg |
| Operating Temperature: | 0 to 50°C |
| Warranty: | 3 Years |
| Inlet: | Hard wire |
| Outlets: | Hard wire |
| Batteries: | Sealed, Lead-Acid Battery |
| Or Long Life Lithium-Ion Battery |
| Extended Battery Cabinet: | 02010024 (Lead-Acid 2U) |
| 02010529 (Lithium-Ion 2U) |
|
| 0235A02J (3U) |
|

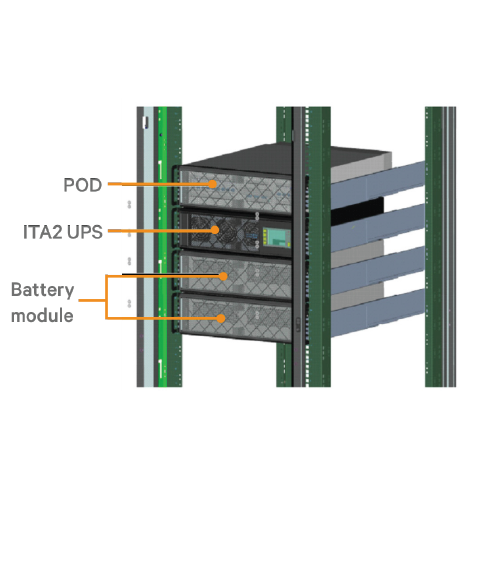

| ITA2 POD | 02010013 Single POD |
| 02010014 1+1 POD |
|
| External Bypass Switches: |
U77-L-EMBS-W-115-221-R-00 1 In 1 Out - Wrap Round Single Feed |
| U77-L-EMBS-C-100-021-R-00 1 In 1 Out - Changeover Dual Feed |
|
| U77-L-EMBS-W-063-441-R-00 3 In 1 Out - Wrap Round Single Feed |
|
| U77-L-EMBS-C-063-041-R-00 3 In 1 Out - Changeover Dual Feed |
|
| Modular Sensors: | SN-T Temperature |
| |
SN-TH Temp/Humidity |
| Note: IS-UINITY-DP card supports only SN-T & SN-TH |
|
| RDU SIC Card: | 02311887 |
| RS Card: | 02351786 |
| Other Sensors: | 02311725 Temperature |
| 02311720 Temp/Humidity | |
| Note: RDU-SIC G2 card supports T, TH, RS & RDU |
|
| Webcard: | IS-UNITY-DP Included |
| Connection Cable: | Included |
| Mounting Rail Kits: | Included |
