02831447 HMX8000R-400
Avocent HMX8000R-400 DH Receiver, 4K, Audio, USB2.0, 10GB-TX (Power Supply included)
The Avocent HMX 8000 IP-Based KVM family provides the highest quality video with fast switching capabilities. With resolution up to 4K 60Hz, the Avocent HMX high performance KVM systems are the leader in the industry.
The HMX8000R Dual Screen Receiver | DP 4K,audio,USB2.0, 10GB-Rx comes with power supply.
Mounting Options:Rack Mount Kit: 02831451 - RMK0104
| Receiver (RX) |

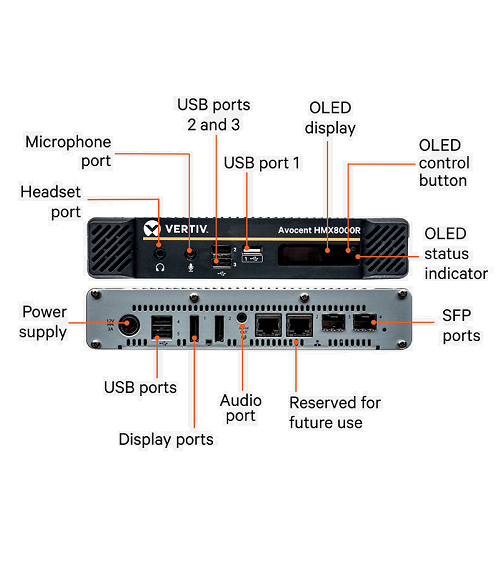

2 x Display ports 5 x USB type A 2 x 3.5mm audio jack sockets 1 x 3.5mm SPDIF socket Ethernet: 1x RJ45 2 x SFP+ cages (MM or SM Fiber support) |
| USB |
4 ports of USB2.0 with USB True Emulation to support keyboard, mouse and touch. USB device seen as: 7 or 13 port hub. |
| Max Video Resolution |
Support 4K UHD or DCI and refresh rates to 60Hz 4K video over single 10Gb fiber |
| Audio | Analog Line in/out 2 channel 16bit 48KHz 1V RMS in/1V RMS out |
| Ethernet |
10GbE (No 10/100/1000 support) |
| Power Supply | 3-pin proprietary connector 100-240VAC, 50/60Hz |
| Product Dims & Weight | 211 × 216 × 41mm @ 2kg |
| Shipping Dims & Weight | 520 x 290 x 190mm @ 5kg |
| Operating Temperature | 0°C to 40°C |
| Rack mount kit |
02831451 - RMK-104 |
