02834529 SC840DPH-400

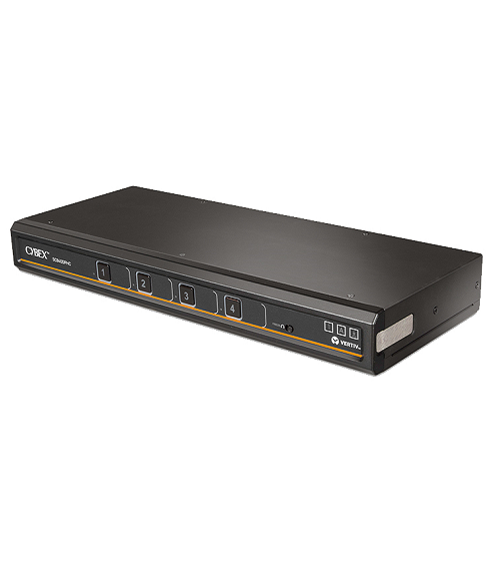

Avocent SC Universal DP/H Secure KVM Switch 4-Port Single Display, PP4.0
The Vertiv Cybex Secure Desktop KVM is ideal for environments where monitoring and managing of multiple computers, covering various degrees of secure data is required. Through Cursor Navigation Switching (CNS), users have the flexibility to manage and monitor their data by simply pressing the left CTRL key and moving their mouse across window borders.
Designed for Common Criteria Protection Profile for Peripheral Sharing Device (PSD) v.4.0, the SC840DPH-400 is a four port, single head secure desktop KVM switch that gives users access up to four computers using a single keyboard, monitor and mouse.
Power Supply Included.
Remote Front Panel: 4-Port Panel: 02840155 - AFP0004| Computers: |
|
| Ports |
4 |
| DP/HDMI Univ Video (1) |
1 |
| Max Resolution |
UHD 4K (3840x2160) @ 60Hz |
| Keyboard & Mouse |
1 x USB 2.0 Type B |
| DPP - USB 2.0 Type B | 0 |
| Analog Audio | 1 x3.5mm Speaker |
| Console: | |
| DP/HDMI Univ Video (1) | 1 |
| Keyboard & Mouse | 2 x USB 2.0 Type A |
| DPP - USB 2.0 Type A | 0 |
| Analog Audio | 1 x 3.5mm Speaker |
| Physical: | |
| Product Dims & Weight | 348 × 127 × 43mm @ 1.5kg |
| Shipping Dims & Weight | TBA |
| Environmental Conditions: | |
| Operating Temperature | 0°C to 40°C |
| Humidity |
0% to 80% non-condensing |
| Electrical Power: | |
| AC Input Voltage | 100-240VAC |
| Power Supplies | 1 x External, 2.5A Max |
| Power Connector | Wall-mounted power supply |
| Desk mount |
DMK-09 |
